- Place of Origin: Henan
- Brand Name: Zhongli
- Model Number: FZQ-50

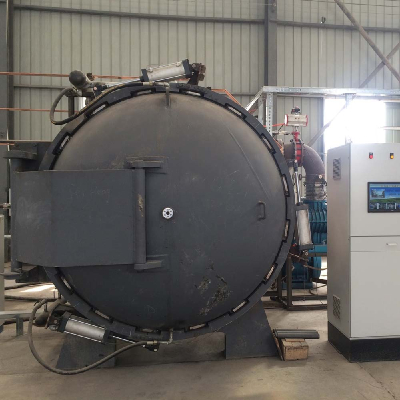

Horizontal Gas Quenching Furnace
Application
The vacuum gas quenching furnace is mainly used for quenching of tool steel, die steel, high speed steel and stainless steel and other material, solid solution treatment of stainless steel pipe fittings, annealing process of multiple magnetic materials.
Advantages
1.This equipment has heating chamber and cooling chamber, high production efficiency, energy (electricity) can be saved;
2.Heating chamber can use soft blanket, hard blanket and metal screen;
3.Compared with ordinary furnace, the parts surface brightness is good after processing, and the service life increase 30%;
4.Can also according to customer's needs, design and produce non-standard customized products.
Heating method:electricity
Main technical parameters
Model | Effective working area(mm) | Loading capacity (kg) | Heating power (kw) | Max. temp | Furnace temp uniformity | Final vacuum (Pa) |
FZQ-50 | 450×300×300 | 100 | 50 | 1350℃ | ±5℃ | 4.0×10-1 6.7×10-3 |
FZQ-80 | 600×400×400 | 200 | 80 | |||
FZQ-120 | 750×500×500 | 300 | 120 | |||
FZQ-150 | 900×600×600 | 500 | 150 | |||
FZQ-240 | 1200×800×800 | 1000 | 240 |
Vertical Vacuum Gas Quenching Furnace
Application
This vertical vacuum gas quenching furnace is mainly used for quenching of tool steel, die steel, high speed steel and stainless steel and other material, solid solution treatment of stainless steel pipe fittings, annealing process of multiple magnetic materials.
Advantages
1.This equipment has heating chamber and cooling chamber, high production efficiency, energy (electricity) can be saved;
2.Heating chamber can use soft blanket, hard blanket and metal screen;
3.Compared with ordinary furnace, the parts surface brightness is good after processing, and the service life increase 30%;
4.Can also according to customer's needs, design and produce non-standard customized products.
Heating method:electricity
Main technical parameters
Model | Effective working area (mm) | Loading capacity (kg) | Heating power (kw) | Max. temp | Furnace temp uniformity | Final vacuum (Pa) |
FZQL-160 | ￠800×1000 | 700 | 160 | 1350℃ | ±5℃ | 4.0×10-1 6.7×10-3 |
FZQL-200 | ￠900×1000 | 850 | 200 | |||
FZQL-240 | ￠1000×1000 | 1000 | 240 | |||
FZQL-300 | ￠1300×1000 | 1500 | 300 | |||
FZQL-360 | ￠1500×1000 | 2000 | 360 |
