- Place of Origin: Henan
- Brand Name: Zhongli
- Model Number: FZTN-60

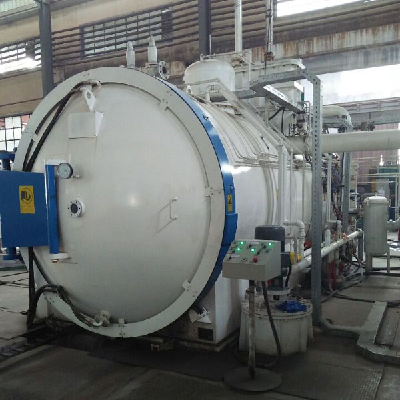

Vacuum Carbonitriding Furnace
Application
The vacuum carbonitriding furnace is mainly used for carbonitriding of heat treated parts under 100-3000pa vacuum conditions.
Advantages
1.The temperature is lower than carburizing temperature, smaller deformation and higher precision;
2.Increase the hardenability of the heat treated parts, even the carbon steel can be oil hardening in the vacuum furnace, with the hardenability increased, thus the performance of cheap carbon steels can be as good as alloy steels;
3.Compared with ordinary furnace, the parts surface brightness is good after processing, and the service life increase 30%;
4.Can also according to customer's needs, design and produce non-standard customized products.
Heating method:electricity
Main technical parameters
Model | Effective working area(mm) | Loading capacity(kg) | Heating power(kw) | Max. temp | Furnace temp uniformity | Final vacuum(Pa) |
FZTN-60 | 600*400*400 | 100/150 | 60 | 1300℃ | ±5℃ | 4.0*10-1 6.7*10-3 |
FZTN-80 | 750*500*500 | 250/300 | 80 | |||
FZTN-120 | 900*600*600 | 400/500 | 120 | |||
FZTN-220 | 1200*800*800 | 8000/1000 | 220 | |||
FZTN-300 | 1500*1500*800 | 3500/4000 | 300 |
