- Place of Origin: Henan
- Brand Name: Zhongli
- Model Number: RX3-45-12
- Weight: 2210.000 kg

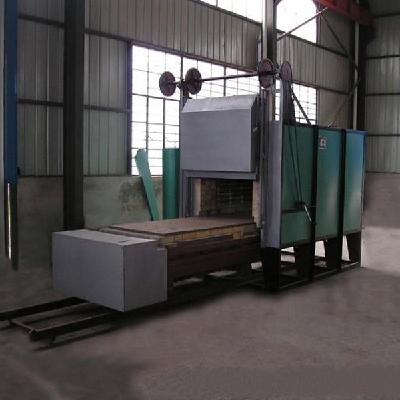

Box type resistance furnace
Brief
RX3 series box type resistance furnace is standard energy-saving batch type furnace, used for small parts or small batch parts for quenching, tempering, annealing and normalizing heat treatment,etc. Especially suitable for in various colleges, universities and research institutes or small batch production in the factory.
Advantages
1.Low cost, little volume and save space;
2.Excellent thermal stability and thermal insulation;
3.Good heat preservation effect and temperature uniformity.
Main technical parameters
Model | Rated power(KW) | Rated voltage (V) | Rated temp (℃) | Phase | Furace hearth size (L*W*H)(mm) | Max.loading capacity (kg) | Weight (kg) |
RX3-15-9 | 15 | 380 | 950 | 3 | 650*300*250 | 80 | 1100 |
RX3-30-9 | 30 | 380 | 950 | 3 | 950*450*350 | 200 | 2000 |
RX3-45-9 | 45 | 380 | 950 | 3 | 1200*600*400 | 400 | 2500 |
RX3-60-9 | 60 | 380 | 950 | 3 | 1500*750*450 | 700 | 4500 |
RX3-75-9 | 75 | 380 | 950 | 3 | 1800*900*550 | 1200 | 5200 |
RX3-20-12 | 20 | 380 | 1200 | 3 | 650*300*250 | 50 | 1400 |
RX3-45-12 | 45 | 380 | 1200 | 3 | 950*450*350 | 100 | 2210 |
RX3-65-12 | 65 | 380 | 1200 | 3 | 1200*600*400 | 200 | 2600 |
RX3-90-12 | 90 | 380 | 1200 | 3 | 1500*750*450 | 400 | 3900 |
RX3-115-12 | 115 | 380 | 1200 | 3 | 1800*900*550 | 600 | 4900 |
RX3-14-13 | 14 | 380 | 1350 | 3 | 520*220*220 | 50 | 635 |
RX3-25-13 | 25 | 380 | 1350 | 3 | 600*280*300 | 80 | 1200 |
RX3-37-13 | 37 | 380 | 1350 | 3 | 810*550*370 | 100 | 1920 |
