- Place of Origin: Henan
- Brand Name: Zhongli
- Model Number: RT-2

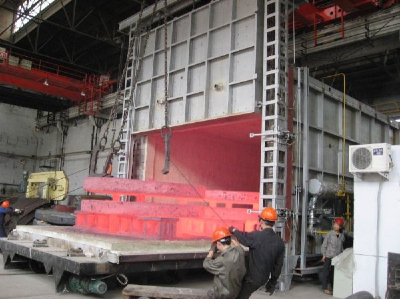

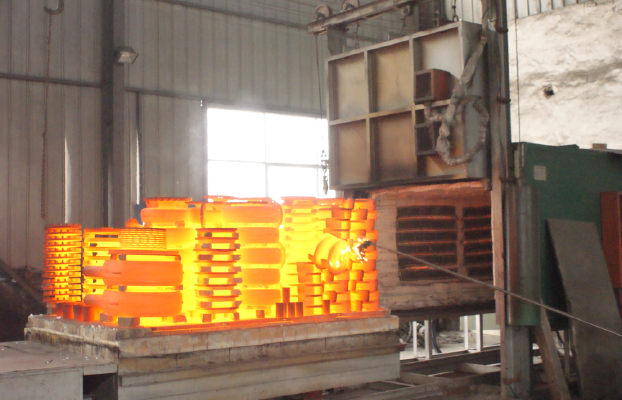

Natural gas bogie hearth furnace
Brief
RT series natural gas bogie hearth furnace is the national standard energy-saving heat treatment furnace, mainly used for large-scale and large quantities metal casing, forging, steel and pipeline parts for quenching, tempering, annealing and normalizing., etc.
Application field
Mainly used for the following metal mechanical parts:
1.Large and medium-sized high chrome parts;
2.Casting parts, such as high manganese steel casting, gray iron castings, nodular cast iron.,etc;
3.Forging parts;
4.Steel ball;
5.Hammerhead of the crusher;
6.Wear-resisting liners;
7.Pressure vessel;
8.Slewing bearing;
9.Large axial;
10.Mould material.
Structure
This furnace consist of furnace shell, furnace linings ,furnace door, furnace door hoisting appliance, the natural gas ignition and control system, bogie and driving mechanism and electrical control system, etc. the bogie can be designed tilting.
Features
1.Large loading capacity, high efficiency and low operation cost;
2.The furnace linings is all fiber structure, compared to the brick furnace chamber, effectively improve the performance of heat preservation;
3.Using multiple district heating, improving the temperature uniformity;
4.Using the natural gas as the heating source, reducing the use cost;
5.Adopting high speed burner, evenly distributed on both sides, each burner gas pipe is equipped with the control electromagnetic valve, and burning mouth equipped with independent complete combustion controller,.
6.With functions of automatic ignition, flame detection and automatic fire alarm to snuff out, so fully guarantee the stability and security of the combustion control system.
Main technical parameters
Model | Max. Temperature(℃) | Working temperature(℃) | Furnace hearth size(m) (L*W*H) | Max.loading Capacity(t) | Natural gas consumption(m3/h) |
RT-1 | 1200 | 0-1150 | 7*5*3 | 150 | 600-800 |
RT-2 | 1200 | 0-1150 | 8*6*3 | 190 | 600-900 |
RT-3 | 1200 | 0-1150 | 12*6*2.5 | 240 | 700-1000 |
Remarks: Various different sizes furnace can be customized as user’s needs.
