- Size: 35
- Place of Origin: Henan
- Brand Name: Zhongli
- Model Number: RX3-250-9

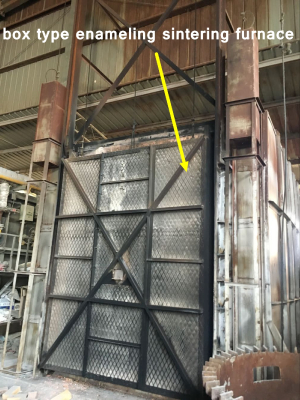

Technical specification of RX3-250-9 Full Fiber Enameling Sintering Furnace
Ⅰ、Application
This RX3-250-9 is a batch type furnace, which is mainly used for annealing of all kinds of enamel products before spraying, and drying & sintering work after product spray.
Ⅱ、main parameters of the RX3-250-9 furnace
NO. | Item | |
1 | Rated power | 250Kw |
2 | Rated voltage | 380V |
3 | Phase | 3 |
4 | Rated frequency | 50Hz |
5 | Rated temperature | Max. 950℃ |
6 | Temperature Control zone number | 2 zones, The upper and the lower two temperature control zones. |
7 | Effective chamber size | 2200mm×1200mm×1600mm (L×W×H)） |
8 | Rated loading capacity | 500 units (according to the size of products offered by user. It takes about 10 minute to sinter per batch.) |
9 | Heating method | Resistant band, five sides heating( right& left wall, furnace door and back wall, furnace bottom) |
10 | Average heating speed | 80-200℃/h |
11 | Temperature homogenization method | natural-convection flow |
12 | Temperature control method | Intelligent digital meters and PID control ; with over-temperature alarm, automatically and manually control ; |
13 | Temperature uniformity | ≤±5℃( constant heat preservation stage) |
14 | Furnace surface temperature | ≤ surrounding temperature 40℃ |
15 | Temp.control accuracy | ≤±2℃ |
16 | Both sides of furnace door sealing | flexible sealing |
17 | Furnace door sealing method | Gravity with mechanical spring pressure, the furnace door will back 20mm first and then lift vertically. |
18 | Insulating layer thickness | 330mm ( it is made of 250×300×600mm highly pure fiber folded block, and 80mm thickness aluminum silicate fiber board) |
19 | External dimension | 3500mm×2200mm×4100mm(L×W×H) |
