- Place of Origin: Henan
- Brand Name: Zhongli
- Model Number: FZS-40

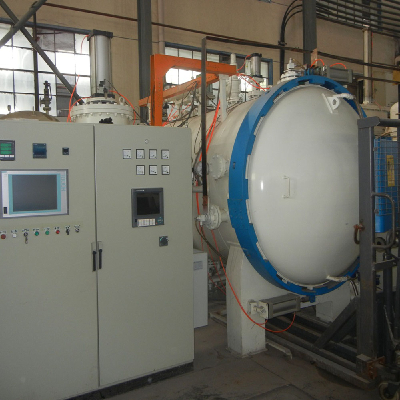

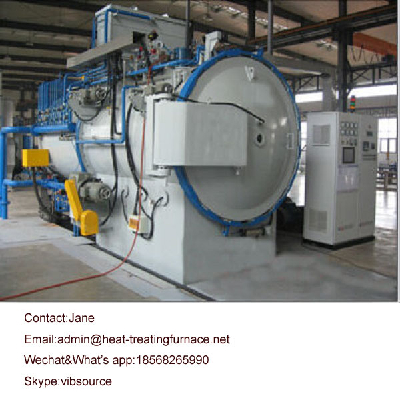

Vacuum Water Quenching Furnace
Application
This vacuum water quenching furnace is mainly used for solid solution treatment and water quenching of titanium alloy, low alloy steels and elastic alloys, etc.
Advantages
1.Compared with ordinary furnace, the parts surface brightness is good after processing, and the service life increase 30%;
2.Can also according to customer's needs, design and produce non-standard customized products.
Heating method:electricity
Main technical parameters
Model | Effective working area (mm) | Loading capacity (kg) | Heating power (kw) | Max. temp | Furnace temp uniformity | Final vacuum (Pa) |
FZS-40 | 450*300*300 | 60 | 40 | 1300℃ | ±5℃ | 4.0*10-1 6.7*10-3 |
FZS-65 | 600*400*400 | 150 | 65 | |||
FZS-85 | 750*500*500 | 300 | 85 | |||
FZS-120 | 900*600*600 | 500 | 120 | |||
FZS-220 | 1200*800*800 | 1000 | 220 |
