- Place of Origin: Henan
- Brand Name: Zhongli
- Model Number: FZS-70

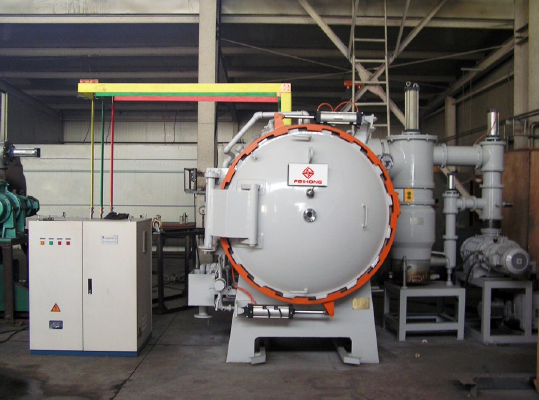

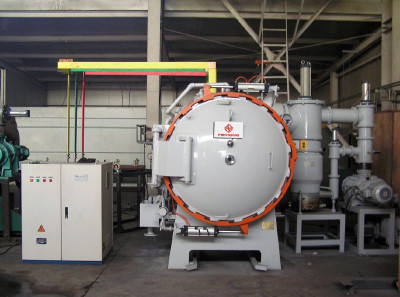

Vacuum Sintering Furnace
Application
This vacuum sintering furnace is mainly used for vacuum sintering of hard alloy, ceramic material, powder injection molding, magnetic materials and porous layer materials.
Advantages
1.Intelligent temperature controller, with the automatically control temperature function of heating, cooling and constant temperature;
2.Automatic fault alarm display, improve operations safe;
3.Can also according to customer's needs, design and produce non-standard customized products.
Heating method:electricity
Main technical parameters
Model | Effective working area (mm) | Loading capacity (kg) | Heating power (kw) | Max. temp | Furnace temp uniformity | Final vacuum (Pa) | |
FZS-70 | 450*300*300 | 100 | 70/90 | 1600-2000℃ | ±5℃ | 4.0*10-1 6.7*10-3 | |
FZS-110 | 600*400*400 | 200 | 110/140 | ||||
FZS-160 | 750*500*500 | 300 | 160/190 | ||||
FZS-210 | 900*600*600 | 500 | 210/260 | ||||
FZS-330 | 1200*800*800 | 1000 | 330/390 | ||||
