- Place of Origin: Henan
- Brand Name: Zhongli
- Model Number: FZT-40

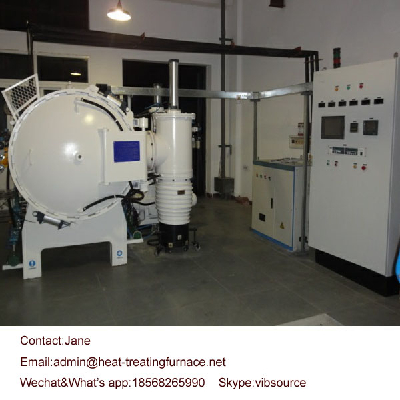

Vacuum Annealing Furnace
Application
This vacuum annealing furnace is mainly used for bright annealing of high temperature alloy steel, magnetic materials, nonferrous metals, stainless steel and titanium alloy, etc.
Advantages
1.The heat treated parts can be kept primary color after annealing;
2.Compared with ordinary furnace, the parts surface brightness is good after processing, and the service life increase 30%;
3.Can also according to customer's needs, design and produce non-standard customized products.
Heating method:electricity
Main technical parameters
Model | Effective working area(mm) | Loading capacity (kg) | Heating power (kw) | Max. temp | Furnace temp uniformity | Final vacuum (Pa) |
FZT-40 | 450*300*300 | 60 | 40 | 1300℃ | ±5℃ | 4.0*10-1 6.7*10-3 |
FZT-65 | 600*400*400 | 150 | 65 | |||
FZT-85 | 750*500*500 | 300 | 85 | |||
FZT-120 | 900*600*600 | 500 | 120 | |||
FZT-220 | 1200*800*800 | 1000 | 220 |
