- Place of Origin: Henan
- Brand Name: Zhongli
- Model Number: LDMC-25A
- Weight: 1600.000 kg

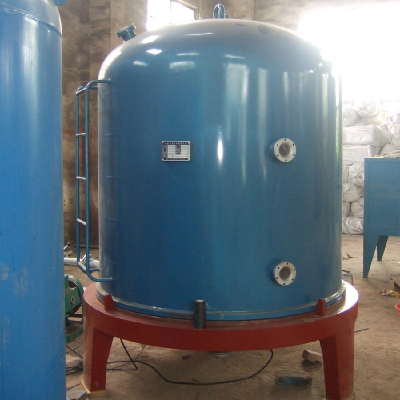

Glow Plasma Nitriding Furnace
Application
LDMC Series plasma nitriding furnace is mainly used for rapid shallow layer nitriding of alloy steel, stainless steel, high-speed steel and tool steel.
Structure
LDMC Series plasma nitriding furnace consist of furnace body, transmission equipment, vacuum pumping systems, power supply system, gas supply system and measure temperature, etc.
Advantages
1.Compared with gas nitriding furnace,has the advantages of fast nitriding, nitriding layer organization is easy to control, need only 3 to 10h;
2. After nitriding treatment, surface hardness can reach up to HV900(HRC64),nitriding depth can be controlled in 0.09-0.87mm,can significantly improve the surface hardness, wear resistance and corrosion resistance.
Heating method:electricit
Main technical parameters
Model | LDMC-25A | LDMC-50A | LDMC-75A | LDMC-100A | LDMC-150A |
Final vacuum (Pa) | 6.67 | ||||
Pressure rising rate(Pa/min) | 0.13 | ||||
Vacuum pump | 2x-4 | 2x-8 | 2x-8 | 2x-8 | 2x-15 |
2x-4 | 2x-8 | 2x-8 | 2x-15 | 2x-30 | |
Heating power(kw) | 25 | 50 | 75 | 100 | 150 |
Working area(mm) | Φ660*800 | Φ1060*950 | Φ920*1200 | Φ1200*1200 | Φ1500*1500 |
Max heating area(cm2) | 1.25*104 | 2.5*104 | 3.5*104 | 5*104 | 7.5*104 |
Loading capacity(kg) | 500 | 800 | 1000 | 1200 | 2000 |
working temp.(℃) | 650 | 650 | 650 | 650 | 650 |
Cooling water consumption(m3/h) | 0.7 | 0.8 | 0.9 | 1.0 | 1.0 |
Overall dimension(mm) | Φ1240*2000 | Φ1557*2350 | Φ1417*2600 | Φ1875*2600 | Φ2175*2900 |
Weight(t) | 1.6 | 2.73 | 2．96 | 3.55 | 3.95 |
