- Size: 000
- Place of Origin: Henan
- Brand Name: Zhongli
- Model Number: RT4-180-11

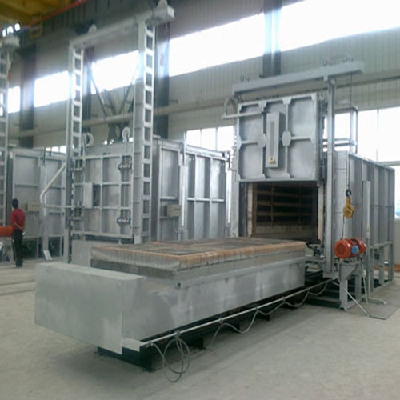

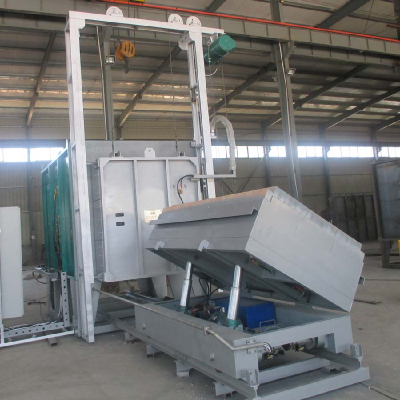

1. Equipment name: All fiber high temperature tilting bogie hearth furnace
2. Application: used for high manganese steel, high chromium steel and other work-piece for quenching ,and annealing.
3.Brief
Ø Furnace temperature uniformity
Ensure the furnace temperature uniformity meet the requirements of technical parameters by rational heating power distribution, advanced intelligent program temperature controller, excellent heat preservation performance and technology application of multiple airtight measures.
Ø Programmed automatic operation heating process: after loading the work-piece into furnace, setting the temperature-rising process curves by intelligent program temperature controller, temperature control conducted automatically according to the temperature-rising process curves.
Ø Energy-saving furnace lining: using refractory fiber module, have advantages of excellent heat preservation performance , less accumulation of heat and so on.
Ø Convenient maintenance: All of trolley transmission, lifting framework and hold-down mechanism are easy dismountable structure.
Ø Safety protection: The temperature control and protective atmosphere is controlled by electrical interlock effectively ensure the operation safety of annealing furnace
- Size: 000
- Place of Origin: Henan
- Brand Name: Zhongli
- Model Number: RT4-180-11
Main technical parameters
⑴ Equipment name: all fiber high temperature tilting bogie hearth furnace
⑵ Specifications and models: RT2-180-11
⑶ Supply voltage：380V
⑷ Supply frequency：50Hz
⑸ Phase：3
⑹ Rated power：180KW
⑺ Temperature controlled zone：2
⑻ Heating element connection：Y/Y， Five surface heating
⑼ Maximum working temperature：1100℃
⑽ Furnace hearth size：1800mm×1000mm×1000mm（L×W×H）
⑾ Loading capacity：2000Kg
⑿ No-load heating up time：≤3h
⒀Furnace temperature uniformity：±10℃（after 2 hours heat preservation）
⒁Temperature control precision：±2℃
⒂Furnace body surface temperature increase
Furnace shell≤40℃
Furnace door ≤50℃ (not including the sealing position between furnace door and furnace panel )
