- Place of Origin: Henan
- Brand Name: Zhongli
- Model Number: FZC2-40

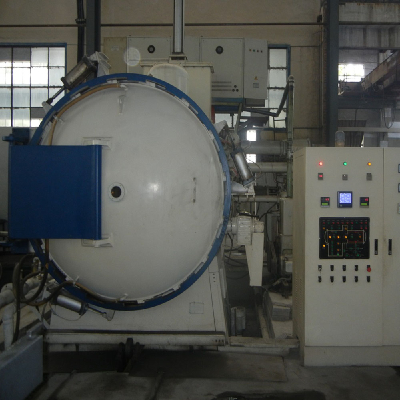

Double Chamber Vacuum Oil Quenching Furnace
Application
This double chamber vacuum oil quenching furnace is mainly used for bright quenching and annealing of alloy steel, tool steel, die steel, high-speed steel, bearing steel, spring steel and stainless steel, etc. Can also be used for vacuum sintering of ceramic material and hard alloy.
Advantages
1.Compared with ordinary furnace, the heat treated parts surface brightness is good after processing, and the service life increase 30%;
2.Can also according to customer's needs, design and produce non-standard customized products.
Heating method:electricity
Main technical parameters
Model | Effective working area (mm) | Loading capacity(kg) | Heating power(kw) | Max.temp | Furnace temp. uniformity | Final vacuum (Pa) |
FZC2-40 | 450*300*300 | 60 | 40 | 1300℃ | ±5℃ | 4.0*10-1 6.7*10-3 |
FZC2-65 | 600*400*400 | 150 | 65 | |||
FZC2-85 | 750*500*500 | 300 | 85 | |||
FZC2-120 | 900*600*600 | 500 | 120 | |||
FZC2-240 | 1200*800*800 | 1000 | 240 |
