Technical Datas of RX3-45-9
Ⅰ、Application

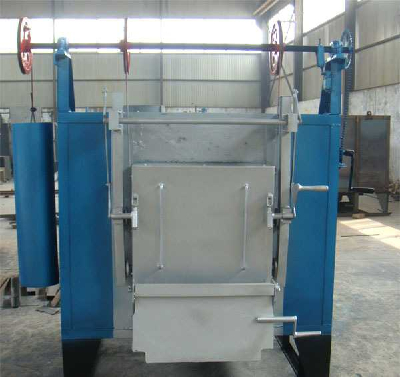

This box resistance furnace is a batch type heat treatment furnace, which is mainly used for quenching/hardening, tempering, annealing and normalizing and other heat treatment processs of small metal parts and alloy steel workpeace.
- Size: 13
- Place of Origin: Henan
- Brand Name: Zhongli
- Model Number: RX3-45-9
- Weight: 2600.000 kg
Ⅱ、Main parameters
1 | Rated voltage | 440V 50HZ |
2 | Rated power | 45KW |
3 | Phase | 3P |
4 | Working temperature | 950℃ |
5 | Max. temperature | 950℃ |
6 | Effectice furnace hearth size (L x W xH) | 1200x600x400mm |
7 | Furnace Temperature Uniformity | ≤±10℃ |
8 | Heating element Material | 0Cr25AL5 (resistance wire) |
9 | Connection of Heating Elements | Y connection |
10 | Heating-up Time at Empty | ≤2.5h (heat up to 900 ℃) |
11 | Power loss at empty | ≤10kw |
12 | Furnace shell temperature | ≤50℃ |
13 | Furnace lifting method | manual vertical way |
14 | Max. Loading capacity | 400 kgs |
15 | Temperature precision | ±1℃ |
16 | Temperature controlling system | Using standard separated control cabinet and temperature controller |
